P-Type vs N-Type Silicon Wafers for High Performance Devices

The choice between P-type and N-type silicon wafers plays a critical role in determining the electrical performance, efficiency, and long-term reliability of semiconductor devices. From integrated circuits to high-efficiency solar cells, selecting the correct silicon wafers ensures optimal carrier transport, reduced recombination losses, and consistent fabrication results. Modern semiconductor applications increasingly rely on precise control of dopant type, resistivity, and crystal quality to meet demanding performance requirements.

Doping Fundamentals and Electrical Behavior

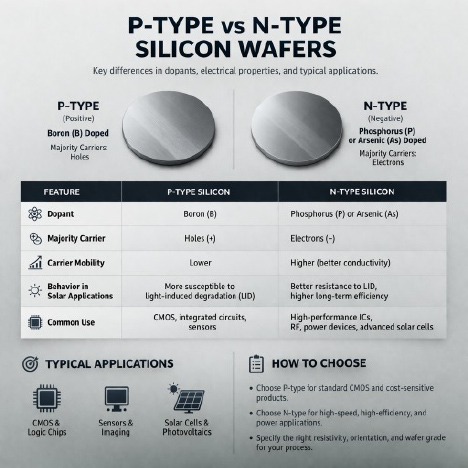

Silicon wafers become electrically active through a process called doping, where specific impurities are introduced into the crystal lattice. In P-type silicon, boron atoms create holes that act as positive charge carriers. In contrast, N-type silicon uses dopants such as phosphorus or arsenic to introduce free electrons, which serve as negative charge carriers. These differences directly influence conductivity, switching speed, and overall device performance.

P-Type Silicon: Proven and Widely Used

P-type silicon wafers have long been the standard in semiconductor manufacturing due to their stability and compatibility with established fabrication processes. They are commonly used in CMOS devices, sensors, MEMS structures, and traditional solar cells. P-type substrates are cost-effective and widely available, making them suitable for high-volume production. However, their performance can be affected by light-induced degradation (LID), especially in photovoltaic applications.

N-Type Silicon: Higher Efficiency and Stability

N-type silicon wafers offer superior electrical performance due to higher electron mobility compared to hole mobility in P-type materials. This results in improved conductivity, faster switching speeds, and reduced recombination losses. N-type wafers are also resistant to boron-oxygen related degradation, making them ideal for advanced solar technologies and high-performance electronic devices.

Resistivity and Carrier Lifetime Considerations

Resistivity is a key parameter when selecting a wafer, as it determines how easily current flows through the material. Low-resistivity wafers are typically used in power devices, while higher-resistivity substrates are preferred for sensors and detectors. Carrier lifetime is equally important, particularly in solar cells, where longer lifetimes improve energy conversion efficiency. Engineers often evaluate these characteristics alongside other silicon wafer properties to ensure optimal device performance.

Crystal Growth Methods and Material Quality

Silicon wafers are commonly produced using Czochralski (CZ) or float zone (FZ) growth methods. CZ wafers are widely used for cost-effective production, while float zone silicon wafers provide higher purity and lower oxygen content. FZ wafers are particularly valuable in research and high-performance applications where minimizing impurities is critical for achieving maximum carrier lifetime and device efficiency.

Surface Quality and Wafer Specifications

Surface finish and thickness uniformity are essential for reliable semiconductor processing. Prime grade silicon wafers offer tight control over total thickness variation (TTV), low surface roughness, and minimal defect density. These characteristics are especially important in advanced lithography and thin-film deposition processes, where even minor surface imperfections can impact yield and performance.

Applications in Solar Cells and Optoelectronics

In solar cell technology, N-type wafers are increasingly preferred for high-efficiency designs such as TOPCon and heterojunction (HJT) cells, while P-type wafers remain widely used in PERC cells. Both materials are also used in optoelectronic devices, including photodetectors and imaging sensors. For photovoltaic research and production, solar wafers are available in multiple grades and doping configurations to support different efficiency and cost targets.

Thin Wafers and Advanced Device Architectures

As semiconductor devices continue to shrink and improve, thinner substrates are becoming more important. thin silicon wafers help reduce material usage while maintaining strong electrical performance. These wafers are particularly useful in flexible electronics, MEMS devices, and next-generation solar cells where reduced thickness can improve efficiency and lower manufacturing costs.

Choosing Between P-Type and N-Type Silicon

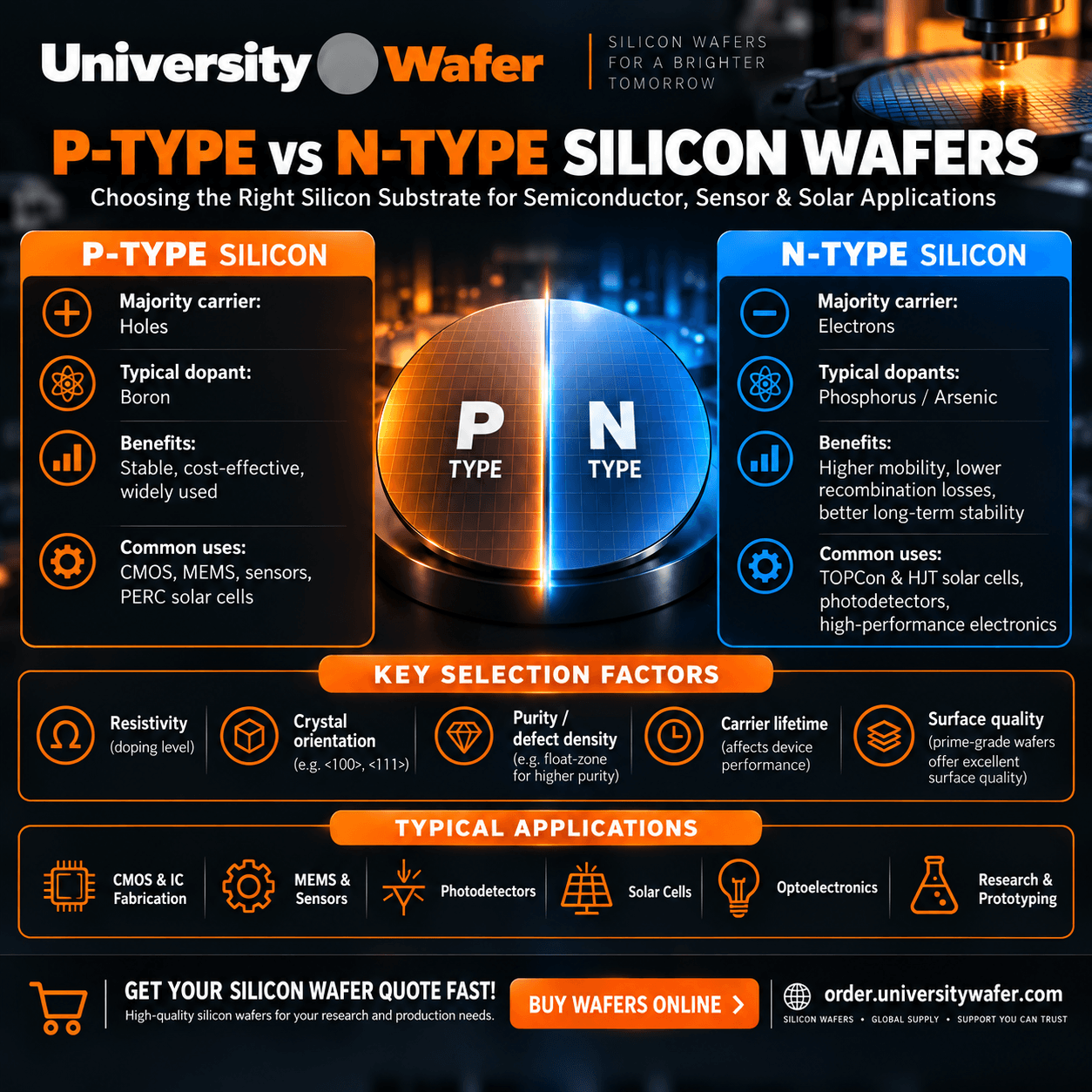

The decision between P-type and N-type silicon depends on the application requirements, performance goals, and fabrication process. P-type wafers offer cost efficiency and compatibility with existing technologies, while N-type wafers provide higher efficiency, better stability, and improved electrical performance. For early-stage development or cost-sensitive projects, test grade silicon wafers can be used for prototyping and experimentation before scaling to higher-grade materials.
